Are you still using the traditional Vaccinator for Modern Poultry Farming?
They are outdated!
Try our 4-in-1 Poultry Integrated Automated Vaccination System
What’s new?
- Integration of 4 Immunization Workflows into 1 system, improving efficiency
- Reached out 1200 pcs poultry per hour by skilled workers
- Labor Cost Saving: one worker can finish all process
- Controlled Precision in Drug Administration
- Suitable for a wide age range of chicks
- Simple Cleaning and Part Replacement
- Faster Training and Learning Curve
- Precise Injection Speed Control
- Reduced Stress and Mortality
- Compact and Lightweight Design
- Intelligent Counting Function
- Fine-Tune Dosing Parameters
- User-Friendly Operation
Equipment Parameters
1) Injection dose adjustment range: subcutaneous injection at the back of the neck: 0.1~0.7ml; intramuscular injection
at the root of the wing: 0.1~0.6ml; immunization by puncture of the wing membrane: 0.001~0.09ml (i.e. 1~90ml/thousand birds); eye and nose drops immunization: 0.01~0.09ml (i.e. 10~90ml/thousand birds)
2) Efficiency: 1200 pcs poultry per hour for skilled workers.
Equipment Specifications:

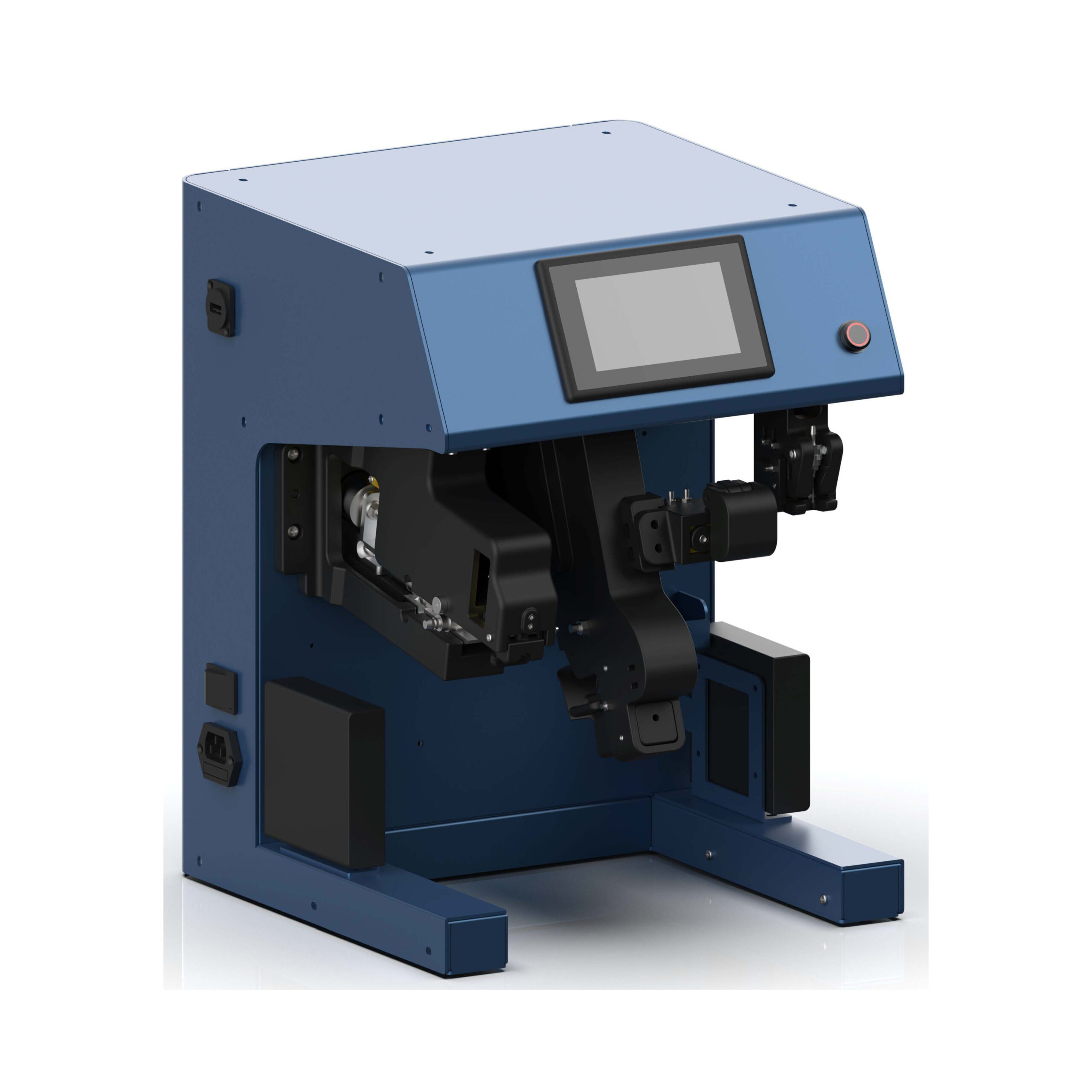

1) C4 4-in-1 Poultry Integrated Automated Vaccination System
Power supply: 220V /120V, 50Hz/60Hz
Maximum power: 75W
Maximum size: Main machine: W31cm x H41cm x D34cm, working base: W36mm x H47cm x D39cm.
Weight: main unit:14kg, work stand:2kg
2) C3 3-in-1 Poultry Integrated Automated Vaccination System
Power supply: 220V /120V, 50Hz/60Hz
Maximum power: 65W
Maximum size: Main machine: W26cm x H41cm x D34cm, working base: W31mm x H47cm x D39cm.
Weight: main unit:11kg, work stand:2kg
