This equipment is mainly used for live oocyte collection from cattle, horses, pigs, sheep, and donkeys; measurement of ocular muscle area; pregnancy diagnosis, follicle monitoring, and related examinations for small animals, zoos, aquariums, pet animals, and invasive species.
Key Specifications

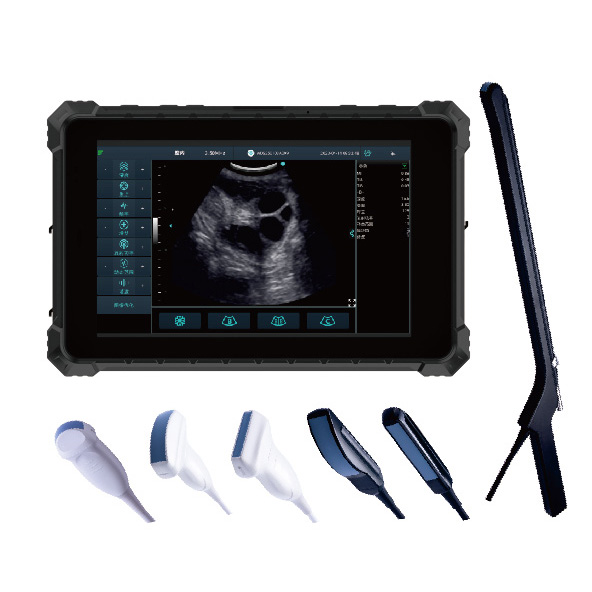

- 1pc 10-inch high-brightness, high-resolution, waterproof main unit
- 1pc 128-element OPU-dedicated live egg collection probe
- 1pc 15,000 mAh lithium battery (built-in)
- 1pc charging adapter
- 1pc carrying case
Professional Probe Suite for Enhanced Diagnostic Quality
Professional Probe Series: Enhancing Diagnostic Quality
Standard Configuration: 128-element OPU-specific high-frequency probe for in vivo oocyte retrieval (integrated probe and handle design)
Optional
128-element (4–9 MHz) micro-convex transducer
128-element (6–14 MHz) high-frequency linear array transducer
128-element (5–9 MHz) rectal transducer
128-element (2–6.4 MHz) rectal convex transducer
128-element (2–6.4 MHz) large-convex transducer
Precise Multifunctional Testing for Farms
- Assessing ovarian development in cattle
- Accurate measurement of corpus luteum size
- Identifying and measuring ovarian follicles
- Follicle monitoring
- Ultrasound scans of cows before and after estrus to determine the ovulation period
System Specifications
- The ultrasound mainboard is seamlessly integrated with the tablet for unlimited flexibility
- The imaging system utilizes a highly integrated, multi-channel digital wireless processing module
- User-friendly interface with simple and smooth operation
- 10-inch high-brightness, high-resolution tablet with IP67 waterproof rating, designed to withstand harsh environments
- 15,000mAh high-capacity battery for extended battery life
- Convenient features include image storage and full-screen video playback
- System: Android OS, 256 MB RAM
- Channels: 32 channels
- Software Languages: Chinese, English
Image Technical Specifications
- Display Modes: Color Doppler Imaging System B, BIB, Color, PW
- Depth Range: 1–29 cm
- Scan Angle: 30–145°
- Frequency Range: 2.0–14 MHz
- Dynamic Range: Adjustable from 1 to 15
- Focus Range: Adjustable from 3 to 15
- Gain Range: Adjustable from 1 to 255
- Transmitter Power: Adjustable from 1 to 3
- Frame Correlation: Adjustable from 1 to 8 levels
- Image Enhancement: Adjustable from 1 to 5 levels
- One-touch image and video storage
- One-touch full screen
- One-touch image optimization
Smart High-Definition Imaging
- Features high-end chips and intelligent transmission technology
- Fully digital signal processing enhances diagnostic accuracy and reliability
- Clear, high-resolution images
- Optimized focusing at different probe depths improves overall image quality
- Rapid image transmission
